- 鏈條介紹
- 鏈條尺寸規格參數

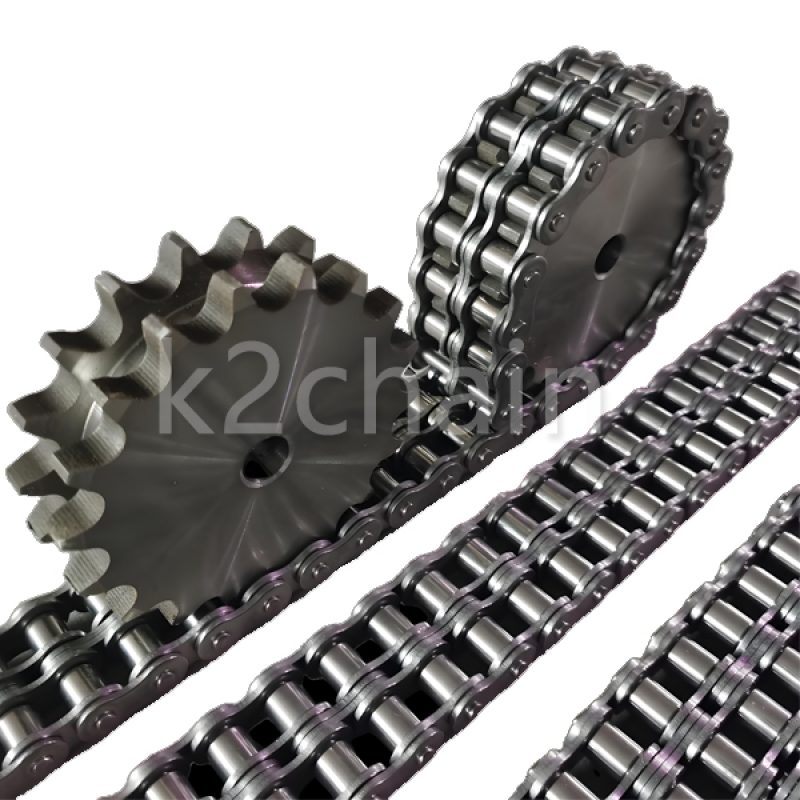

根據不同的使用環境，分別采用不同的SUS300系不銹鋼材料制作，生產過程的每一環節都受到工廠ISO9001質量保證體系的嚴密監控，所形成的高品質及范圍廣泛的系列產品，適于在水中，酸性，堿性等腐蝕性環境下使用。還可用于低溫，高溫等特殊環境。 (-20℃～400℃)
不銹鋼滾子鏈的套筒和滾子均使用冷擠壓成型，鏈板多道冷軋硬化，這些工藝保證了科艾傳動的不銹鋼滾子鏈抗拉強度指標，比其它品牌的同類產品高出25%以上。

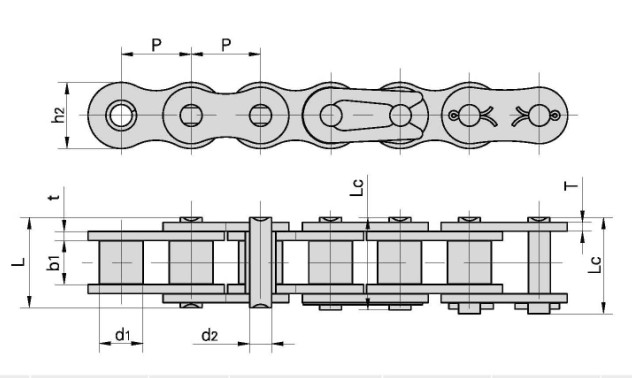

| 鏈號 | 節距 | 滾子直徑 | 內節內寬 | 銷軸直徑 | 銷軸長度 | 內鏈板高度 | 鏈板厚度 | 破斷載荷 | 每米長重 | |
| Chain No. | P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q | q |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
| *25SS | 6.350 | 3.30 | 3.18 | 2.31 | 7.9 | 8.4 | 6.00 | 0.8 | 2.5/568 | 0.15 |
| *35SS | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 13.17 | 9.00 | 1.30 | 5.5/1250 | 0.33 |
| 40SS | 12.700 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12.00 | 1.50 | 9.6/2182 | 0.63 |
| 41SS | 12.700 | 7.77 | 6.25 | 3.58 | 13.75 | 15.0 | 9.91 | 1.30 | 6.0/1360 | 0.46 |
| 50SS | 15.875 | 10.16 | 9.40 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 15.2/3455 | 1.03 |
| 60SS | 19.050 | 11.91 | 1.2.57 | 5.94 | 25.9 | 27.7 | 18.00 | 2.42 | 21.7/4932 | 1.51 |
| 80SS | 25.400 | 15.88 | 15.75 | 7.92 | 32.7 | 35.0 | 24.00 | 3.25 | 38.9/8841 | 2.62 |
| 100SS | 31.750 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.00 | 4.00 | 60/13636 | 3.94 |
| 120SS | 38.100 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.70 | 4.80 | 72.5/16477 | 5.72 |
| 140SS | 44.450 | 25.40 | 25.22 | 12.70 | 54.4 | 59.0 | 41.0 | 5.60 | 94/21363 | 7.70 |
| 04BSS | 60.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.8 | 5.00 | 0.60 | 2.0/455 | 0.11 |
| 058SS | 80.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.9 | 7.10 | 0.80 | 3.5/795 | 0.20 |
| #06BSS | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.20 | 1.30 | 6.2/1.409 | 0.41 |
| 08BSS | 12.700 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.80 | 1.60 | 12/2727 | 0.70 |
| 10BSS | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.70 | 1.70 | 14.5/3295 | 0.94 |
| 12BSS | 19.050 | 12.07 | 1.1.68 | 5.72 | 22.5 | 24.2 | 16.00 | 1.85 | 18.5/4205 | 1.16 |
| 16BSS | 25.400 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | 21.00 | 4.15/3.1 | 40/9091 | 2.73 |
| 20BSS | 31.750 | 19.05 | 19.56 | 10.19 | 41.3 | 45.0 | 26.40 | 4.5/3.5 | 59/1.3409 | 3.73. |
| 24BSS | 38.100 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.20 | 6.0/4.8 | 104/25454 | 7.20 |
| 32BSS | 50.800 | 29.21 | 30.99 | 17.81 | 66.0 | 71.0 | 42.00 | 7.0/6.0 | 150/34090 | 10.22 |
* 套筒鏈.表中滾子直徑d1為套簡直徑
#直鏈板
